Product Details:

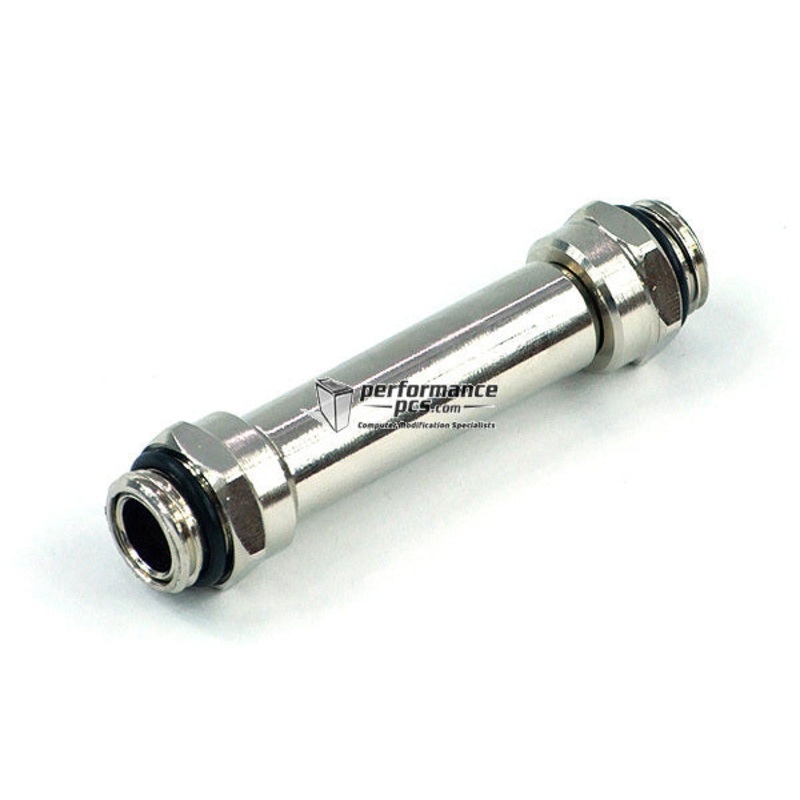

The variable SLI/CF connection piece connects two VGA waterblocks which are installed in a Multi-GPU array. The special feature of this piece is its adjust ability by approx. 12mm lengthwise. therefore this connector can be used on graphics card and waterblocks from multiple manufacturers. The connector piece can be used to parallely or serially connect the waterblocks. This is of course also possible with more than 2 waterblocks for e.g. Triple SLI or Quad Crossfire.

The connector pieces are available in three lengths:

Art. 64033 for 1 Slot length
Art. 64034 for 2 Slot lengths
Art. 64035 for 3 Slot lengths

Specifications:

• A direct bond between two graphics cards
• Thread size: G1/4
• Material: Nickel plated brass
• Distance between the waterblocks: 59.5mm to 70.9mm
• Suitable for Mainboards with 3 Slot distance between the graphics cards
• Suitable for CrossFire graphics card coolers by example Ek Water Blocks, Koolance, DangerDen, XSPC, Alphacool OTC Flat

Please note: The connector piece is only compatible with waterblocks which have connectors on both their top- and underside. It cannot be used on waterblocks with only one set of connectors.
